Location:  Home -> Products  ->  Server chassis  ->  4U-24 disk slot
4U-24 disk slot
Specification parameters

Product model: 24 disc position

Product Name: 4U

Product size: W438.2mm * L650mm * H173mm (including ear hooks W482mm * L650mm * H173mm)

Material: Environmentally friendly, high-quality galvanized sheet

Material thickness: 1.2mm

Surface treatment: handle, hanging ear oxidized silver, body and accessories galvanized steel plate natural color

Power supply: Supports ATX power supply and Great Wall redundant power supply

Panel settings: power switch, restart switch, power indicator light, hard drive indicator light, 2 network indicator lights, USB 3.0 interface * 2

Expansion: 7 full height PCI/PCIE expansion slots

Motherboard: Supports E-ATX (backward compatible) motherboards

Backboard: Standard 6GB/S 8087 direct connection interface, supports time-sharing startup, SATA/SAS hard drive interface

Fan: 3 12025 fans in the center, 2 6020 fans in the rear window

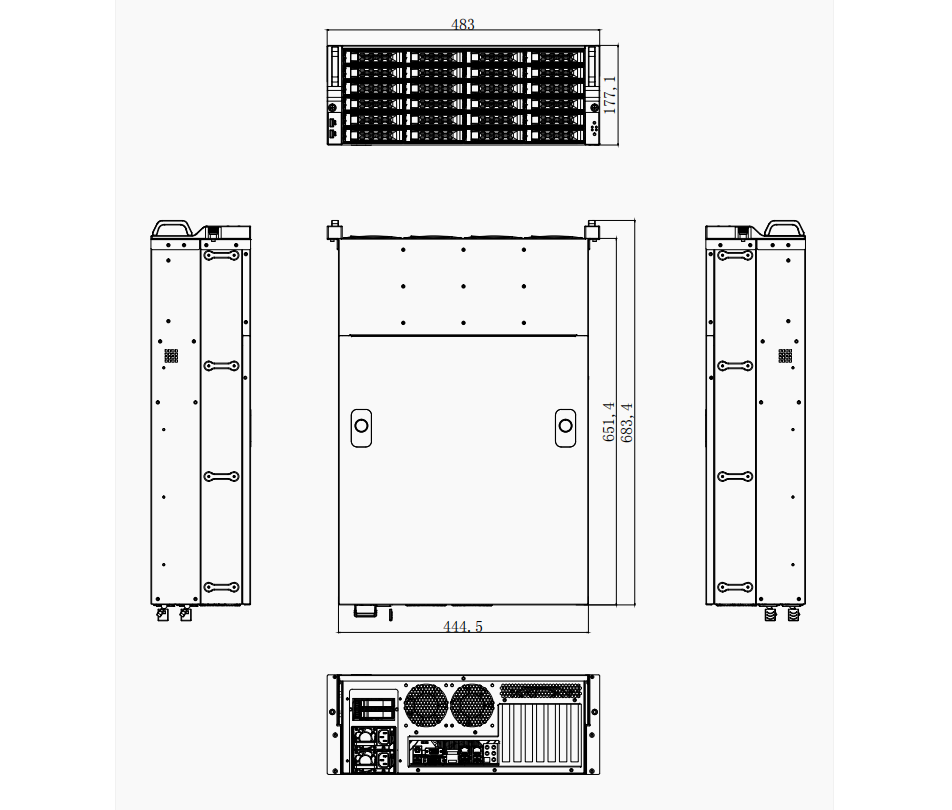

Product dimension diagram
